Vertical Pressure Leaf Filter

Vertical Pressure Leaf Filter

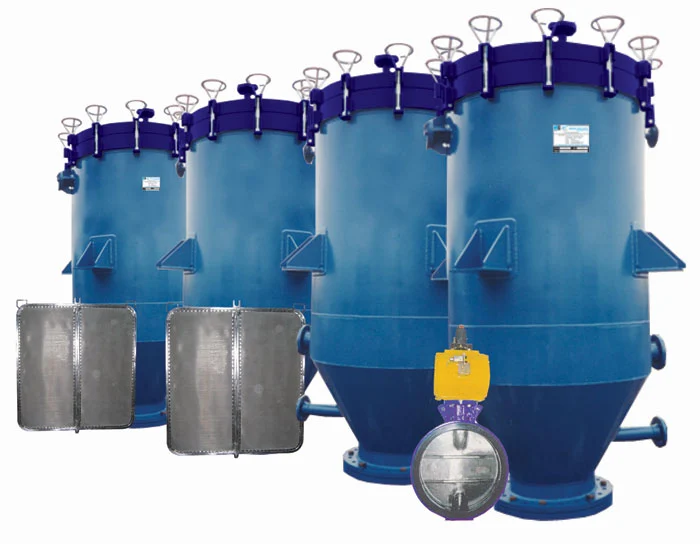

Vertical pressure leaf filter is vertical steel vessel where many vertically mounted S.S. filter leaves are housed inside with the help of properly designed manifold. For filtration of liquid with suspended solid contents upto 7%. No filter cloth requirements. Automatic dislodging of filter cake by pneumatic vibrator.

Filtration area upto 130m2

  • Resins
  • Bleaching Earth
  • Crude Oil
  • Sulphur
  • Nickel Catalyst
  • Glucose
  • Fatty Acid
  • Brine etc.

Area of Application

Edible Oil Biofuel

Catalyst Recovery

Fertilisers & Pesticides

Petrochemical & Fine Chemical

Dyes & Pigments

Food & Beverages

Molten Sulphur

Silicate Sulphate & Brine

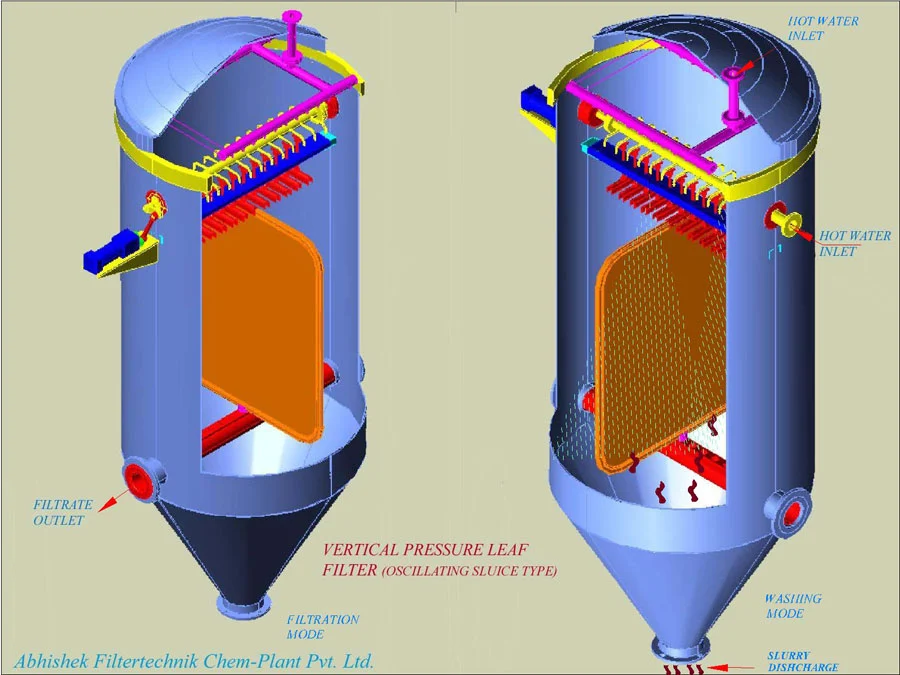

Vertical Pressure Leaf Filter (Oscillating Sluice Pipe Type)

These unique model filters are used in the case of wet cake discharge. The filter is fitted with an oscillation sluice pipe, which is located above the leaves. The filter cake discharges as concentrated slurry via the bottom cone.

Material of construction

Stainless steel, Carbon Steel with rubber, P.P. & PVDF lining, monel, lnconel etc. Leaves in stainless steel 304, 316, 316L.

Filtration area from 1 m2 to 120 m2 can be supplied.
